lcmaps_pluginmanager.c File Reference

the plugin manager for LCMAPS. More...

#include "lcmaps_config.h"
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <malloc.h>
#include <dlfcn.h>
#include <gssapi.h>
#include "lcmaps_types.h"
#include "lcmaps_log.h"
#include "lcmaps_arguments.h"
#include "lcmaps_defines.h"
#include "_lcmaps_utils.h"
#include "_lcmaps_db_read.h"
#include "_lcmaps_runvars.h"
#include "_lcmaps_cred_data.h"
#include "../evaluationmanager/evaluationmanager.h"

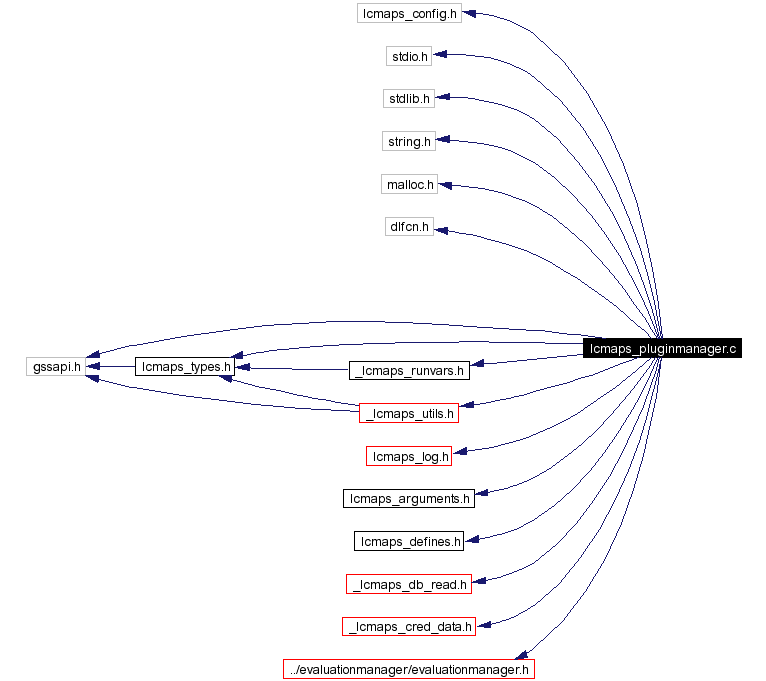

Include dependency graph for lcmaps_pluginmanager.c:

Go to the source code of this file.

Data Structures
struct	lcmaps_plugindl_s
	the lcmaps plugin module structure. More...
Defines
#define	NUL   '\0'
#define	MAXPROCS   4
Typedefs
typedef int (*	lcmaps_proc_t )()
	this type corresponds to the types of the plugin interface functions. More...
typedef struct lcmaps_plugindl_s	lcmaps_plugindl_t
	the type definition of the lcmaps plugin module structure. More...
Enumerations
enum	lcmaps_proctype_e {   INITPROC, RUNPROC, TERMPROC, INTROPROC,   ENDOFPROCS }
	This enumeration type gives the different plugin symbol/function types. More...
Functions
lcmaps_plugindl_t*	PluginInit (lcmaps_db_entry_t *, lcmaps_plugindl_t **)
	Initialize the plugin. More...
lcmaps_proc_t	get_procsymbol (void *, char *)
	get procedure symbol from dlopen-ed library. More...
int	print_lcmaps_plugin (int, lcmaps_plugindl_t *)
	print the lcmaps_plugindl_t structure. More...
int	parse_args_plugin (const char *, const char *, char **, int *)
	convert plugin argument string into xargc, xargv. More...
int	clean_plugin_list (lcmaps_plugindl_t **)
	clean (free) the list of plugins and call the plugin termination functions. More...
Variables
char*	lcmaps_db_file_default = NULL
char*	lcmaps_dir = NULL
lcmaps_plugindl_t*	plugin_list = NULL

---

Detailed Description

the plugin manager for LCMAPS.

Author:

Martijn Steenbakkers for the EU DataGrid.

The interface to the PluginManager module is composed of:

1. startPluginManager(): start the PluginManager --> load plugins, start evaluation manager
2. runPluginManager(): run the PluginManager --> run evaluation manager --> run plugins
3. stopPluginManager(): stop the PluginManager
4. reloadPluginManager(): reload the PluginManager ? (will we implement this ?)
5. runPlugin(): run the specified plugin. (used by Evaluation Manager)
6. resetCredentialData(): reset the Credential Data. (used by Evaluation Manager)

Definition in file lcmaps_pluginmanager.c.

---

Define Documentation

#define MAXPROCS   4

maximum number of interface symbols in plugin modules For internal use only. Definition at line 65 of file lcmaps_pluginmanager.c.

#define NUL   '\0'

NUL character For internal use only. Definition at line 61 of file lcmaps_pluginmanager.c.

---

Typedef Documentation

typedef struct lcmaps_plugindl_s lcmaps_plugindl_t

the type definition of the lcmaps plugin module structure. For internal use only.

typedef int(* lcmaps_proc_t)()

this type corresponds to the types of the plugin interface functions. For internal use only. Definition at line 91 of file lcmaps_pluginmanager.c.

---

Enumeration Type Documentation

enum lcmaps_proctype_e

This enumeration type gives the different plugin symbol/function types. For internal use only. Enumeration values: INITPROC   this value corresponds to the plugin initialization function RUNPROC   this value corresponds to the plugin run function (get credentials) TERMPROC   this value corresponds to the plugin termination function INTROPROC   this value corresponds to the plugin introspect function Definition at line 77 of file lcmaps_pluginmanager.c.

---

Function Documentation

lcmaps_plugindl_t * PluginInit ( lcmaps_db_entry_t * db_handle, lcmaps_plugindl_t ** list ) [static]

Initialize the plugin. This function takes a plugin LCMAPS database entry and performs the following tasks: Create entry in (plugin)list Open the plugins and check the symbols plugin_init and confirm_authorization run plugin_init Parameters: db_handle   handle to LCMAPS db (containing pluginname and pluginargs) list   pointer to plugin structure list to which (plugin) module has to be added Returns: pointer to newly created plugin structure or NULL in case of failure For internal use only. Definition at line 354 of file lcmaps_pluginmanager.c. Referenced by startPluginManager().

int clean_plugin_list ( lcmaps_plugindl_t ** list ) [static]

clean (free) the list of plugins and call the plugin termination functions. Parameters: list   list   pointer to list of plugins which has to be freeed. Return values: 0   succes. 1   failure. For internal use only. Definition at line 781 of file lcmaps_pluginmanager.c. Referenced by startPluginManager(), and stopPluginManager().

lcmaps_proc_t get_procsymbol ( void * handle, char * symname ) [static]

get procedure symbol from dlopen-ed library. Parameters: handle   handle of dynamic library symname   name of procedure symbol Returns: handle to procedure symbol or NUll For internal use only. Definition at line 639 of file lcmaps_pluginmanager.c. Referenced by PluginInit().

int parse_args_plugin ( const char * name, const char * argstring, char ** xargv, int * xargc ) [static]

convert plugin argument string into xargc, xargv. Parse the argument string of the plugin and create xargv and xargc Parameters: name   name of the plugin (goes into xargv[0]) argstring   string containing the arguments xargv   array of argument strings (has to be freed later) xargc   number of arguments Return values: 0   succes. 1   failure. For internal use only. Definition at line 578 of file lcmaps_pluginmanager.c. Referenced by PluginInit().

int print_lcmaps_plugin ( int debug_lvl, lcmaps_plugindl_t * plugin ) [static]

print the lcmaps_plugindl_t structure. Parameters: debug_lvl   debugging level plugin   plugin structure Return values: 0   succes. 1   failure. For internal use only. Definition at line 680 of file lcmaps_pluginmanager.c. Referenced by runPluginManager(), and startPluginManager().

---

Variable Documentation

char * lcmaps_db_file_default = NULL [static]

For internal use only. Definition at line 129 of file lcmaps_pluginmanager.c.

char * lcmaps_dir = NULL [static]

For internal use only. Definition at line 130 of file lcmaps_pluginmanager.c.

lcmaps_plugindl_t * plugin_list = NULL [static]

For internal use only. Definition at line 131 of file lcmaps_pluginmanager.c.

---
