lcmaps_vo_data.h File Reference

LCMAPS module for creating and accessing VO data structures. More...

#include <grp.h>

Include dependency graph for lcmaps_vo_data.h:

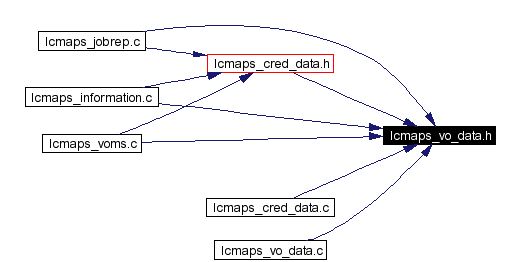

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	lcmaps_vo_data_s
	structure that contains the VO information found in the user's gss credential. More...
struct	lcmaps_vo_mapping_s
	structure that contains the VO information string (or FQAN) and the local Gid it is mapped to. More...
Defines
#define	LCMAPS_NO_GID   (gid_t)(-1)
Typedefs
typedef struct lcmaps_vo_data_s	lcmaps_vo_data_t
	Type of VO information structure.
typedef struct lcmaps_vo_mapping_s	lcmaps_vo_mapping_t
	Type of VO mapping structure.
Functions
lcmaps_vo_data_t*	lcmaps_createVoData (const char *vo, const char *group, const char *subgroup, const char *role, const char *capability)
	Create a VoData structure. More...
int	lcmaps_deleteVoData (lcmaps_vo_data_t **vo_data)
	Delete a VoData structure. More...
int	lcmaps_cleanVoData (lcmaps_vo_data_t *vo_data)
	Clean a VoData structure. More...
int	lcmaps_copyVoData (lcmaps_vo_data_t *dst_vo_data, const lcmaps_vo_data_t *src_vo_data)
	Copy a VoData structure into an empty VoData structure. More...
int	lcmaps_printVoData (int debug_level, const lcmaps_vo_data_t *vo_data)
	Print the contents of a VoData structure. More...
int	lcmaps_stringVoData (const lcmaps_vo_data_t *vo_data, char *buffer, int nchars)
	Cast a VoData structure into a string. More...
lcmaps_vo_mapping_t*	lcmaps_createVoMapping (const char *vo_data_string, const char *groupname, const gid_t gid)
	Create a VoMapping structure. More...
int	lcmaps_deleteVoMapping (lcmaps_vo_mapping_t **vo_mapping)
	Delete a VoMapping structure. More...
int	lcmaps_cleanVoMapping (lcmaps_vo_mapping_t *vo_mapping)
	Clean a VoMapping structure. More...
int	lcmaps_copyVoMapping (lcmaps_vo_mapping_t *dst_vo_mapping, const lcmaps_vo_mapping_t *src_vo_mapping)
	Copy a VoMapping structure into an empty VoMapping structure. More...
int	lcmaps_printVoMapping (int debug_level, const lcmaps_vo_mapping_t *vo_mapping)
	Print the contents of a VoMapping structure. More...

---

Detailed Description

LCMAPS module for creating and accessing VO data structures.

Author:

Martijn Steenbakkers for the EU DataGrid.

The interface is composed of:

1. lcmaps_createVoData(): create a VoData structure
2. lcmaps_deleteVoData(): delete a VoData structure
3. lcmaps_cleanVoData(): clean a VoData structure
4. lcmaps_copyVoData(): copy (the contents of) a VoData structure
5. lcmaps_printVoData(): print the contents of a VoData structure
6. lcmaps_stringVoData(): cast a VoData structure into a string
7. lcmaps_createVoMapping(): create a VoMapping structure
8. lcmaps_deleteVoMapping(): delete a VoMapping structure
9. lcmaps_cleanVoMapping(): clean a VoMapping structure
10. lcmaps_copyVoMapping(): copy (the contents of) a VoMapping structure
11. lcmaps_printVoMapping(): print the contents of a VoMapping structure

Definition in file lcmaps_vo_data.h.

---

Define Documentation

#define LCMAPS_NO_GID   (gid_t)(-1)

Invalid GID Definition at line 37 of file lcmaps_vo_data.h.

---

Function Documentation

int lcmaps_cleanVoData ( lcmaps_vo_data_t * vo_data )

Clean a VoData structure. Clean a VoData structure that was previously filled with lcmaps_copyVoData(). The contents are freed and set to zero. Parameters: vo_data   a pointer to a VoData structure Return values: 0   in case of success -1   in case of failure Definition at line 195 of file lcmaps_vo_data.c.

int lcmaps_cleanVoMapping ( lcmaps_vo_mapping_t * vo_mapping )

Clean a VoMapping structure. Clean a VoMapping structure that was previously filled with lcmaps_copyVoMapping(). The contents are freed and set to zero. Parameters: vo_mapping   a pointer to a VoMapping structure Return values: 0   in case of success -1   in case of failure Definition at line 682 of file lcmaps_vo_data.c.

int lcmaps_copyVoData ( lcmaps_vo_data_t * dst_vo_data, const lcmaps_vo_data_t * src_vo_data )

Copy a VoData structure into an empty VoData structure. Copy a VoData structure into an empty VoData structure which has to exist. Parameters: dst_vo_data   pointer to a empty VoData structure that should be filled src_vo_data   pointer to the VoData structure that should be copied Return values: 0   success -1   failure (either src_vo_data or dst_vo_data was empty) Definition at line 263 of file lcmaps_vo_data.c.

int lcmaps_copyVoMapping ( lcmaps_vo_mapping_t * dst_vo_mapping, const lcmaps_vo_mapping_t * src_vo_mapping )

Copy a VoMapping structure into an empty VoMapping structure. Copy a VoMapping structure into an empty VoMapping structure which has to exist. Parameters: dst_vo_mapping   pointer to a empty VoMapping structure that should be filled src_vo_mapping   pointer to the VoMapping structure that should be copied Return values: 0   success -1   failure (either src_vo_mapping or dst_vo_mapping was empty) Definition at line 736 of file lcmaps_vo_data.c.

lcmaps_vo_data_t * lcmaps_createVoData ( const char * vo, const char * group, const char * subgroup, const char * role, const char * capability )

Create a VoData structure. Create a VoData structure (store a VO, group, (subgroup,) role, capability combination). Allocate the memory. To be freed with lcmaps_deleteVoData(). Parameters: vo   name of the VO group   name of the group subgroup   name of the subgroup (ignored for the moment) role   the role capability   the capability (whatever it is) Returns: pointer to the VoData structure or NULL Definition at line 81 of file lcmaps_vo_data.c.

lcmaps_vo_mapping_t * lcmaps_createVoMapping ( const char * vo_data_string, const char * groupname, const gid_t gid )

Create a VoMapping structure. Create a VoMapping structure store the VO information string (or FQAN) in combination with the corresponding gid. Allocate the memory. To be freed with lcmaps_deleteVoMapping(). Parameters: vo_data_string   the VO information string (or FQAN) groupname   the (POSIX) group name gid   the (POSIX) GID Returns: pointer to the VoMapping structure or NULL Definition at line 577 of file lcmaps_vo_data.c.

int lcmaps_deleteVoData ( lcmaps_vo_data_t ** vo_data )

Delete a VoData structure. Delete a VoData structure that was previously created with lcmaps_createVoData(). The pointer to the VoData structure is finally set to NULL; Parameters: vo_data   pointer to a pointer to a VoData structure Return values: 0   in case of success -1   in case of failure Definition at line 141 of file lcmaps_vo_data.c.

int lcmaps_deleteVoMapping ( lcmaps_vo_mapping_t ** vo_mapping )

Delete a VoMapping structure. Delete a VoMapping structure that was previously created with lcmaps_createVoMapping(). The pointer to the VoMapping structure is finally set to NULL; Parameters: vo_mapping   pointer to a pointer to a VoMapping structure Return values: 0   in case of success -1   in case of failure Definition at line 631 of file lcmaps_vo_data.c.

int lcmaps_printVoData ( int debug_level, const lcmaps_vo_data_t * vo_data )

Print the contents of a VoData structure. Parameters: vo_data   pointer to a VoData structure debug_level   debug_level for which the contents will be printed Returns: 0 (always) Definition at line 324 of file lcmaps_vo_data.c.

int lcmaps_printVoMapping ( int debug_level, const lcmaps_vo_mapping_t * vo_mapping )

Print the contents of a VoMapping structure. Parameters: vo_mapping   pointer to a VoMapping structure debug_level   debug_level for which the contents will be printed Returns: 0 (always) Definition at line 787 of file lcmaps_vo_data.c.

int lcmaps_stringVoData ( const lcmaps_vo_data_t * vo_data, char * buffer, int nchars )

Cast a VoData structure into a string. The user of this function should create the buffer of size nchars beforehand. In buffer a string like the following will be written: "/VO=fred/GROUP=fred/flintstone/ROLE=director/CAPABILITY=destroy" Currently the SUBGROUP entry is ignored. Only if the information is present in the VoData structure, it is added to the string. Both data for VO and GROUP are required (might change). Parameters: vo_data   pointer to a VoData structure buffer   pointer to character array of size nchars nchars   size of character array Return values: 0   in case of success -1   in case of failure Definition at line 392 of file lcmaps_vo_data.c.

---
