pdl_rule.h File Reference

Include file for using the pdl rules. More...

#include "pdl.h"

Include dependency graph for pdl_rule.h:

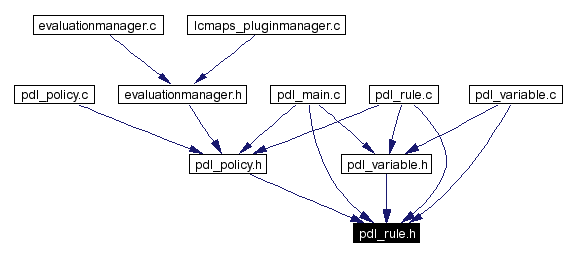

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	rule_s
	Structure keeps track of the state and the true/false braches. More...
Typedefs
typedef struct rule_s	rule_t
	Structure keeps track of the state and the true/false braches. More...
Enumerations
enum	rule_type_t { STATE, TRUE_BRANCH, FALSE_BRANCH }
	Which type is the current rule. More...
enum	recursion_t { NO_RECURSION = 0x00, RECURSION = 0x01, RECURSION_HANDLED = 0x02 }
	Tell something about recursion in rules. More...
enum	side_t { left_side, right_side }
	Given a rule, which side of the rule are we working on. More...
Functions
rule_t*	add_rule (record_t *state, record_t *true_branch, record_t *false_branch)
void	free_rules (rule_t *rule)
void	show_rules (const rule_t *rule)
void	start_new_rules (void)
const rule_t*	get_top_rule (void)
void	allow_new_rules (BOOL allow)
void	set_top_rule (const rule_t *rule)
BOOL	check_rule_for_recursion (const rule_t *rule)
void	reduce_rule (rule_t *rule)

---

Detailed Description

Include file for using the pdl rules.

Author:

G.M. Venekamp (venekamp@nikhef.nl)

Version:

Revision:

1.11

Date:

Date:

2003/07/31 10:33:00

Definition in file pdl_rule.h.

---

Typedef Documentation

typedef struct rule_s rule_t

Structure keeps track of the state and the true/false braches.

---

Enumeration Type Documentation

enum recursion_t

Tell something about recursion in rules. Enumeration values: NO_RECURSION   There is no known recursion. RECURSION   Recursion has been found. RECURSION_HANDLED   Recursion has been found and handled/reported. Definition at line 62 of file pdl_rule.h.

enum rule_type_t

Which type is the current rule. Enumeration values: STATE   State. TRUE_BRANCH   True branch. FALSE_BRANCH   False branch. Definition at line 52 of file pdl_rule.h.

enum side_t

Given a rule, which side of the rule are we working on. Enumeration values: left_side   left side, i.e. state part of the rule. right_side   right side, i.e. either true or false branch. Definition at line 72 of file pdl_rule.h.

---

Function Documentation

rule_t* add_rule ( record_t * state, record_t * true_branch, record_t * false_branch )

Add a new rule to the list of rules. This function acts as a wrapper function for _add_rule(). Parameters: state   Starting state true_branch   True transit state false_branch   False transit state Definition at line 86 of file pdl_rule.c.

void allow_new_rules ( BOOL allow )

Is it allowed to add new rules? Parameters: allows   TRUE if adding new rules is allowed, FALSE otherwise. Definition at line 71 of file pdl_rule.c. Referenced by allow_rules().

BOOL check_rule_for_recursion ( const rule_t * rule )

Check the rule for occurances of recursion. Returns: TRUE if a recursion have been found, FALSE otherwise. Definition at line 220 of file pdl_rule.c. Referenced by check_policies_for_recursion().

void free_rules ( rule_t * rule )

Free all resource associated with the rule. Parameters: rule   Rule for which the resources must be freed. Definition at line 637 of file pdl_rule.c. Referenced by add_policy(), and free_policies().

const rule_t* get_top_rule ( void )

Get the top rule. Returns: Top rule. Definition at line 658 of file pdl_rule.c.

void reduce_rule ( rule_t * rule )

Reduce a rule to its elementry form, i.e. all variables in the rule are substituted by their respective values. Parameters: rule   Rule to reduce. Definition at line 558 of file pdl_rule.c. Referenced by reduce_policies().

void set_top_rule ( const rule_t * rule )

Set the top rule to a new value. Parameters: rule   New value of top rule. Definition at line 670 of file pdl_rule.c. Referenced by reduce_policies().

void show_rules ( const rule_t * rule )

Show a rule and its descendants. Parameters: rule   Rule to display. Definition at line 615 of file pdl_rule.c. Referenced by show_policies().

void start_new_rules ( void )

Start a new list of rules. Definition at line 58 of file pdl_rule.c.

---
